- Biomedical Research (2016) Volume 27, Issue 3
Software aided diagnosing of diseases using RBF based neural networks [RADD].V Rajalakshmi1*, GS Anandha Mala2
- *Corresponding Author:
- Rajalakshmi V
Department of Computing
Accepted date: February 25, 2016
With the advancement in technology and change in lifestyle, Indians are more prone to various disorders like diabetes, stroke, hypertension, etc. Presence of these diseases is identified only by regular monitoring and invasive blood tests. Though there is much successful management of communicable diseases and genetic disorders after they occur, there are only limited procedures to identify before they occur. A procedure, which detects the occurrence of such lifetime disorders would save the livelihood, before reaching the critical stage, is essential. The occurrence of such diseases can be detected by inherent watch of symptoms caused in existing patients. The similarity between the existing patients is monitored by using a FUNAP [Function Approximation] System. Existing patients’ data are collected and the system is trained to detect the diseases of monitoring new patients. The method is efficient as it uses artificial neural network for matching and it can be tuned according to the requirements. The system is explained with its architecture and its performance is compared with existing methods.
Radial basis function, Function approximation, Data anonymization, Neural Network.
The usage of internet and social networking web sites has increased the amount of globally available data. Because of this, we are drowning in data but starving for knowledge and privacy. These data provide us the information by data mining to retrieve non-trivial knowledge for future decision making. As techniques for revealing non-trivial patterns using various data mining algorithms are explored, the amounts of such data also increase in an uncontrolled manner. When such data are provided for mining in their original form, it forms a threat for the privacy of an individual. Typical example includes disease of a patient, credit card balance of a customer, purchase details from a departmental store, government weapon details in military, etc., Anonymization issues also occur in surveying, statistical databases, cryptographic computing, access control, social networking and so on. Hence data need to be modified before they are provided for mining or to any third party for processing. Hence the anonymized data should be used to identify the characteristics of a record similar to an original one. When a normal back propagation network or Hopfield network used for disease recognition, they cannot handle anonymized data and hence they are inefficient. The system built for identifying the diseases should be more sensitive to the input data and map with the correct disease even if the input is anonymized. There is an inverse relationship between privacy and utility of the data.
For mining, as the exact data is not required, a perfect approximation is sufficient, the modification is accepted. A neural network is capable of recognizing the exact pattern for an input. This characteristic is utilized to build a system and the system performance can be tuned with its parameters. Thus the efficiency of the output is tunable and hence the system can be utilized to identify the disease with the symptoms of tested patients. Attributes in a database are divided into three types – unique identifying attributes, sensitive attributes, quasi identifying attributes. When data are given for mining unique identifying attributes like patient ID, credit card number, Employee ID, etc., are removed completely from the database. Sensitive attributes like disease, credit card balance, salary, etc., are the primary concerns for mining and they are not altered. Quasi identifying attributes like age, zipcode, height, married, gender, symptoms, etc., are also available in a public database like voter’s list. These are the values which are altered so that the exact individual of the record is not identified. Hence the symptoms used are modified slightly before they are given for mining.
The information disclosure is categorized into two types, Identity disclosure that specifies which record is associated with which individual in a released table and in Attribute disclosure, new information about some individuals is revealed by the released table. In this work, Identity disclosure is handled i.e., the association between an individual and a particular record is tried to be hidden. The features of the record with its sensitive attribute is associated using Radial Basis Function [RBF] based neural network.
Presently, diseases are detected by trial and error method, or by various tests for every disease. When existing methods are used, they are invasive and can be detected only after they occur. There is a need for a method that detects diseases before they occur. Symptoms of various patients are identified and a training data is formed. An RBF network is designed to identify the related disease. There may be more than one symptom for a disease and more than one disease with similar symptoms. Hence neural network are the best method to implement this procedure.
In , diseases are identified using genomics, ie., DNA sequence of the patient and their relatives are analyzed to predict the diseases. Since the DNA sequences of relatives are readily available, this method is not effective . Is a goggle tool which identifies the outbreak of epidemics by number of searches [WBT]. The tool provides only the recently occurring diseases and do not consider a general disorders. In , an effective method to handle the symptoms of diabetes is considered. The method only discusses for existing patients and not for new ones . Proved that Coronary artery disease can develop prematurely and is the leading cause of death among diabetics, making noninvasive risk stratification desirable. This work gave way for relating one disease as a serious symptom for the other to occur  explains the prediction of mortality and subsequent myocardial infarction in patients with unstable coronary artery disease . Supplies the prediction of 2-day stroke risk to inform emergency management. It specifies various symptoms of patients to detect stroke just before two days. It also can detect stroke only after the occurrence of transient ischemic attack (TIA). In , a detailed examination of factors associated with variation in the risk for type 2 diabetes in women with prior gestational diabetes mellitus is given . Provides a mathematical model to estimate the risk of a first stroke using data from 4549 newly diagnosed type 2 diabetic patients enrolled in UK. It relates diabetes as a symptom for 60 other diseases also.
In , a non-invasive procedure, the electron beam CT calcium score appeared to be an effective predictor of coronary artery disease  examines various measures that may be associated with diseases. This is utilized to specify the list of diseases and their symptoms . Explains the recent advances in TB diagnostic technologies, their symptoms and precautions . describes that depression and its medications causes various other disorders including myocardial infarction.
Neural networks are efficient systems which can identify similar items naturally and then they can be anonymized easily. In , back propagation network is used to implement classification of data and in , neural network is used to implement clustering. In  radial basis function [RBF] network is used for privacy preservation. The effectiveness of radial basis function is retrieved from this literature . Specifies the procedure for using health data in the procedure of detecting diseases and various methods used in medical environments. In , a diagnosis of Alzheimer’s type dementia is proposed using support vector machines [SVM], which specifies mathematical equations for specifying the limits of every category. In  a health service system specifying the probability of disease diagnosed.
In order to reduce the execution time of disease detection system, to enhance the efficiency in terms of both sensitivity and accuracy of the results and also to set a tunable parameter, RBF network is used as a function approximation network which can group similar data along with approximating them. The main objectives of this work are,
• To efficiently recognize the anonymized data and classify into one of maximum number of individual diseases.
• To provide proper tuning parameter between accuracy and sensitivity.
• The system should provide more accuracy with less time.
• The system should train itself when error increases.
Description of RADD
Radial basis network is used for grouping the symptoms efficiently to detect the right set of possible diseases. Radial basis network are very sensitive and clearly classifies the output according to input. When the network is trained the number of neurons, spread, gain and error value of the network are fixed a given set of inputs. After the network is trained it can be used to detect the right disease when the symptoms are given. Sensitivity is a value given by the user to choose possible number of outcomes. When required the network can be retrained with new set of inputs and the network will have a new set of parameters.
The value can range between 0 and 100. 0% sensitivity provides all possible diseases for the specified symptoms and 100% sensitivity provides only very particular diseases matching the symptoms. Since the system is a non-invasive procedure for acquiring knowledge 100% sensitivity may not be required always.
Radial Basis Function Network
Radial basis function networks (RBFNs), are special type of neural networks which are being applied for problems such as function approximation, pattern recognition and time series prediction, etc., RBF networks when used directly as a universal approximators of desired accuracy, provide a solution for PPDM but with a less efficiency . The standard RBF network consists of three layers, i.e., the input, hidden and output layers.
The hidden layer of an RBF network can be viewed as a function that maps the input patterns from a nonlinear separable space to a linear separable space. In the new space, the responses of the hidden-layer neurons then form a new feature vectors for pattern representation. Each output vector can be assumed as a representation of a group of input patterns. The architecture of a radial basis network is specified in figure 1 and 2. The figure has n inputs and m outputs.
Given a data set X with size N x m and the output vector Y of same size is shown below:
Now each row of
targets a row of
We want to find a target function f(xi), that produces the lowest error when predicting the unknown related values Yj. This is equivalent to determining the weight vector W for finding Y with minimum error.
Using Radial Basis Network the function is chosen as a radial basis function as follows
The radial function can be specified as
where xk is the center of the activated neuron.
The three main parameters of a radial basis function are
• Centre Xk
• Shape of the radial basis function

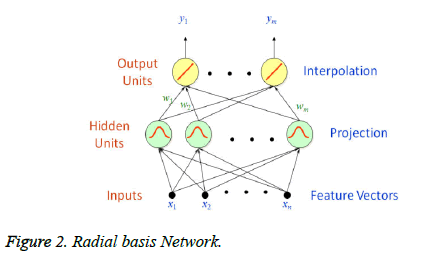

Figure 2 specifies the how an RBF network is given input for anonymization and gives a sample output of function approximators. It shows that the output of the network follows the input and they are not similar values as input.
For training the network, a training set of data is chosen and the network is built.
The goal is set as
Adult data set from UCI repository database is designed, for implementing the disease detection system. The data set contains 48842 records, from which NULL, outliers and obsolete valued records are removed to make 30,162 records after preprocessing. Attributes which are selected for the processing and their properties are shown in table 2.
|Symptoms||Case 1||Case 2||Case 3||Case 4||Case 5||Case 6||Case 7||Case 8||Case 9||Case 10||Case 11||Case 12||Case 13||Case 14||Case 15||Case 16|
|Blood In Stool||0||0||0||0||0||0||0||1||0||0||0||1||0||0||0||0|
|Frequent watery motion||1||1||0||1||0||0||1||0||0||0||0||0||0||0||0||0|
|Loss of Appetite||0||1||0||0||0||0||0||1||1||0||0||1||0||1||1||1|
|Diseases||Diarrhea||Cholera||Malaria||Typhoid||Dengue||Swine Flu||Ebola||Liver Cancer||Diabetes||HIV||Hepatitis||Jaundice||Influenza||Leukaemia||Plague||Tuberculosis|
Table 1: Sample of training data.
|Attribute name||Attribute data type||Attribute relevance|
|Hours per week||Continuous||Quasi Identifier|
|Symptom n||Boolean||Quasi Identifier|
|Risk for Disease||Categorical||Sensitive|
Table 2: Adult data set Attributes
Matlab is used to implement radial basis network and verify the results. Design of the network is done for different spread, goal and number of neurons and the best output is selected based on the performance metrics. Matlab is chosen because of its flexibility in altering the RBF network parameters for tuning and also provides graphical representation of outputs.
A set of 500 records are selected by stratified sampling and the network is trained. Stratified sampling is a probability sampling technique wherein the researcher divides the entire population into different subgroups or strata, then randomly selects the final subjects proportionally from the different strata.
A set of 2500 records are chosen to test the performance of the system with respect to the actual results. The remaining records are given directly and the results are compared with the standard web based technology [WBT] method. Creation of the content forms the core capability of this paper and is created by consulting physicians and various other sources like articles on similar subjects, web sites, etc (Table 1).
A Radial basis network is set using training data for a spread of .85 and error =10 %. Network parameters control the efficiency of the system. Anyone parameter can be used to control sensitivity of the system.
As sensitivity is a run time input and it can be varied for every case, error is chosen to control the sensitivity of the system. When error value of the network is increased its sensitivity decreases and a broad classification is done by the system.
Hence error and sensitivity are inversely proportional parameters. Spread and number of neurons is static parameters and hence they cannot be used. Tables 3,4 and 5 show the outputs for the same sample of 5 cases with sensitivity values 30%, 50% and 80% respectively. The tables show that as the sensitivity increases the number of diseases predicted reduces.
|1||Frequent watery motion, Vomiting, Fatigue, Frequent Urination, Joint Pain||Diarrhea, Cholera, Malaria, Dengue, Diabetes|
|2||Loss of Appetite, Nausea, Rash, Dehydration, Swollen feet||Liver Cancer, Swine Flu, Typhoid, Ebola, Dengue|
|3||Blood in stool, Chest pain, Abdominal pain, Dark urine, Dizziness||Liver Cancer, Plague, Malaria, Jaundice, HIV, Tuberculosis|
|4||Cough, Fever, Gas, Headache, Sneezing||Malaria, Swine Flu, Influenza, Plague, Tuberculosis|
|5||Stuffy nose, Cold sores, Weight gain, Stomach pain, Back pain||Influenza, Dengue, Diabetes, Diarrhea, Leukemia|
Table 3: Sensitivity = 30%.
|1||Abdominal pain, Fatigue, Fever, Joint pain, Stomach pain||Malaria, Dengue, Swine flu, Leukaemia|
|2||Frequent watery motion, Vomiting, Dehydration, Swollen feet||Diarrhea, Typhoid, Ebola, Jaundice|
|3||Blood in stool, Chest pain, Dark urine, Dizziness||Liver cancer, Tuberculosis, Jaundice, Swine Flu|
|4||Cough, Fever, Gas, Headache||HIV, Influenza, Plague, Tuberculosis|
|5||Cold sores, Weight gain, Stomach pain, Back pain||Dengue, Diabetes, Cholera, Leukemia|
Table 4: Sensitivity = 50%.
|1||Fatigue, Fever, Joint pain||Leukemia, Malaria|
|2||Frequent watery motion, Vomiting, Nausea||Typhoid, Cholera|
|3||Stomach pain, Back pain, Fever||Diarrhea, Dengue|
|4||Fever, Joint pain, Blood in stool||Swine flu, Liver cancer|
|5||Cough, Stuffy nose, Nausea||HIV, Hepatitis|
Table 5: Sensitivity = 80%

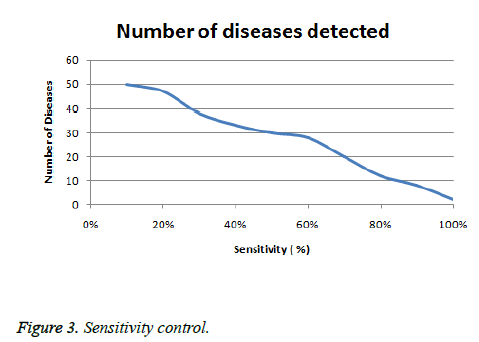

Figure 3 shows the variation of sensitivity and their corresponding number of diseases as output. As the sensitivity is increased, which is implemented by varying the value of error parameter is reduced in the radial basis network, thus classification becomes more specific giving less number of exactly matching diseases.
The validity of the Performance based value was thoroughly studied and due to the content sharing it is mentioned as follows. Performance of RADD is measured against the standard WBT based on two parameters.
• Disease detection time

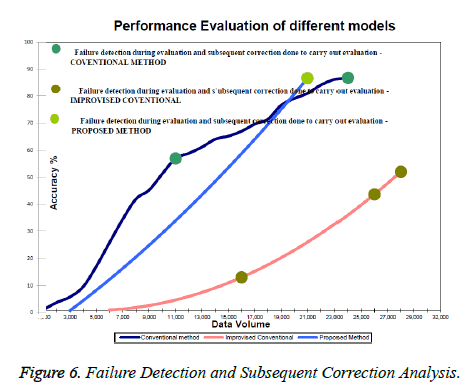

Figure 6 shows the capability of the method in terms of failure detection and correction done automatically. The network adapts itself when a failure occurs. The number of failure on voluminous data is also less when compared to existing methods.

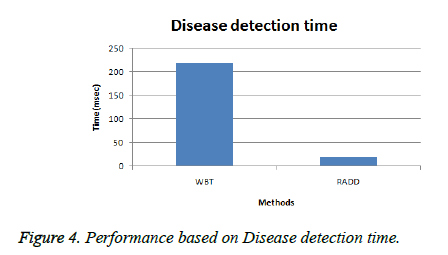

Figure 4 shows the comparison based on disease detection time. WBT uses the existing symptoms, compares them based on the query. As there is no network built and for every query comparison with every symptom in the database is checked it takes more amount of time. RADD has an efficient radial basis neural network which is already trained to handle similar data inputs. Hence RADD produces the result in less time compared to WBT.

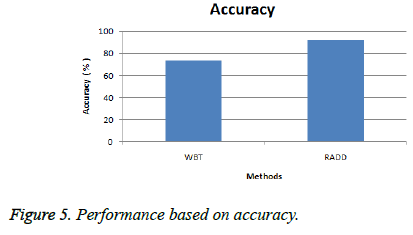

Figure 5 shows the performance comparison based on accuracy of the output. In WBT, the queries are evaluated based on the patient’s experiences. The real symptoms may be hidden or not have occurred directly to the patients. The relationship between various symptoms is not handled and hence accuracy of WBT is less than RADD. RADD uses the actual patient’s database that are anonymized and supplied by medical institutions.
Hence the network which is trained to handle such data provides more accurate results than a web based searching system.
Conclusion and future work
Thus a system used for detecting diseases using radial basis neural network is built and its performance is hence compared with existing system. The reduction in the execution time of disease detection system, the efficiency in terms of both sensitivity and accuracy of the results were also compared along with usage of a tunable parameter, RBF network as a function approximation network which was used to group similar data. The proposed method has the following advantages - less time, reduction in number of tests and early detection.
The system recognized the anonymized data efficiently and classified maximum number of individual diseases. Excellent tuning parameter between accuracy and sensitivity was established and with more accuracy associated with less time. Also, the system self- assisted when error increases.
As continuation of this work, RADD will be put in use to effectively analyze the failures occurring in automotive vehicles. In present scenario, On-Board Diagnostics (OBD) is in place to assist in identifying the type of failure with certain limitations on the fault error codes. This proposed user-friendly system will surpass the existing methods and reduce lot of time and efforts invested into such analysis.
